To retrieve CAD files, click the button below to access the Dropbox folder with all the CAD files including 3D DWG files of the elements of the kitchen shown in short videos below. The PDF CAD File in the Dropbox Folder references specific cabinetry products used in the renderings as well as appliance and plumbing fixture models. Links to these products are also below.
Product Links
Appliances:
Wolf Coffee System (Confirm Actual Model #)
Plumbing Fixtures (Used in Renderings, not sure of actual models):
Cabinetry Products:
White River Panel Molding PM526
White River Reeded Molding RE107
White River 18″ Cavetto Corbel
Walzcraft Glass Door DG-11 (Confirm model#, glass and molding type)
Please note that all other millwork in renderings was done from scratch with simple recessed panels and molding.
Hardware:
Signature Hardware Klein Appliance Pulls 24″ and 18″
Lighting:
Birch Lane Olive Lantern Chandelier
Optional undercabinet lighting and puck lighting for glass doors and space above refrigerator shown in renderings
Paint, Flooring, Tile & Countertops:
Wall and White Cabinets (Glazed): Benjamin Moore Alabaster OC-129
Island: Valspar Pitch Cobalt 5010-2
Flooring: Patara Stone Fossil Stone
Countertops: Arizona Tile DT-Travertino Bone Matte
Backsplash Tile: Ragno Eden Bianco 3 x 11″ Tile
Backsplash Accent Tile: Mila Moondust 6 x 6″ Tile
Columns Video Vignettes
All column tops are constructed with PM526 and RE107 and are 4 1/2″ tall. Width and depth of these top parts are dependent upon the space available for their location. All middle portions are made up of 1/2″ wide flutes separated by 1/2″. Total width of fluted portion and number of flutes are dependent upon the space available for their location. The bottom portions of the ISLAND columns are made with B416 and are 5″ tall. Width and depth are 7 1/4″. The bottom portions of the BAR and SPICE RACKS are made using Bun foot 4116. Molding on cabinet box next to columns for bar and island are composed of a modified version of the Carlton Walzcraft Door. Columns to either side of the REFRIGERATOR at 6 3/4″ wide and 8′ 5″ tall and have five 1/2″ flutes. The bottoms are constructed with B416. The tops are completed with RE107.

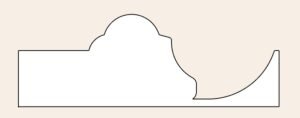

Modified Carlton Molding
